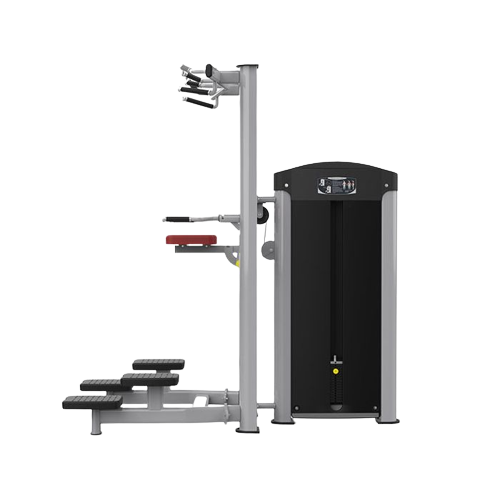

Gainmotion Commercial Assisted Dip Chin - GM-3014

Visit the Gainmotion
Regular price Dhs. 6,695
Sale price Dhs. 6,695 Regular price
Sale Sold out
Only 1 units left

Seen it Lower Price? Our Match Guarantee

Contact our Customer Care team by filling in the form below, with your details and a link of the item you would like us to price match.

  • Vendor:


  • Type:

    Chin / Dip Machine

Description : GM-3014 is a commercial-assisted dip chin trainer. It is a special product for exercising the upper trunk and upper arm muscles. Classic Life Fitness shape design, the gantry is in the shape of an n, which highlights the elegance of Life Fitness and is most suitable for Asians. Grasp the handrail while practicing, keep your body vertical, place your knees on the power pad, and pull your body upwards. Weights impart resistance, allowing the proper load to be adjusted to each individual's needs.

Product Description

  • Knee cushion for unassisted workouts.
  • The multi-arm gripper can diversify the movement and exercise and is suitable for users of different heights.
  • Added 2 steps for easy access.
  • Dual function.


Material Qualification Main tube: SPHC high-quality steel, thickness 2.5-3.0mm, with quality inspection report; Seamless tube: cold drawn steel Q235; Guide Rod: Hardened chrome plated rod and stainless steel.
Processing method All pipes and plates are cut by automatic laser cutting; welding is done by an automatic fixture welding machine to ensure accurate angle and beautiful connection.
Surface treatment process Using the physical high-pressure sandblasting process, environmental protection, degreasing, and rust removal, and increasing surface adhesion.
Surface spray process The car-type powder spraying and baking method is used, two electrostatic powder spraying, and two high-temperature baking paint at 200 degrees Celsius.
Main tube D-type tube 114*57.5*3.0mm, flat oval tube 80*40*3.0mm
Gantry frame Rear cover: 3mm thick steel plate punched into a mesh cover; Front cover: ABS material; Head cover: PP material, consistent open mold forming
Hand Grips Aluminum alloy material with a diameter of 32mm, with aluminum alloy decorative covers at both ends
Load box Completed by POM material CNC lathe, polished and formed, the wire groove is smooth and wear-resistant, and the maximum working load is 220 KG
Instruction icon Size: 650*280mm; Material: PVC; Product instruction icon, detailing product training parts, operating instructions and precautions
Load accessories Stainless steel guide rod: diameter 25*1.5mm; Pulley: Hardened integrated PP pulley or aluminum alloy; Steel wire rope: 7-core imported steel wire with an inner diameter of 5.8mm, the maximum use load is 220 KG
Counterweight device Guide Rod:With magnetic aluminum alloy head; Weight Stack:Cold drawn steel Q235 with cushion
Seat/Back Cushion Three-layer material structure, bottom iron plate, open mold silicone pad, imitation ground PU/PVC leather
Training Cushions Dip molding of natural rubber or CPU and iron core
Cushion adjustment Double-sided 4-lever adjustment plate and two-way air lever device
Bearings Luoyang LYC or imported high-speed bearings
Muscles Worked Latissimus dorsi, deltoid muscle, trapezius muscle, etc.
Size (L x W x H) 2000 x 1140 x 2210mm (78.74" x 44.88" x 87")
GW / NW 226 / 215KG (498.24 / 473.99 lbs)
Weight Stack Standard weight: 80KG (176.36 lbs) Maximum weight: 100KG (220.46 lbs)
